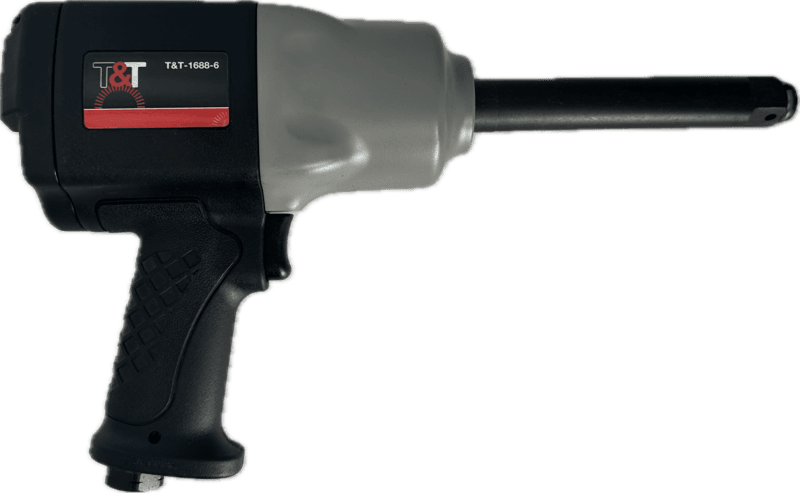

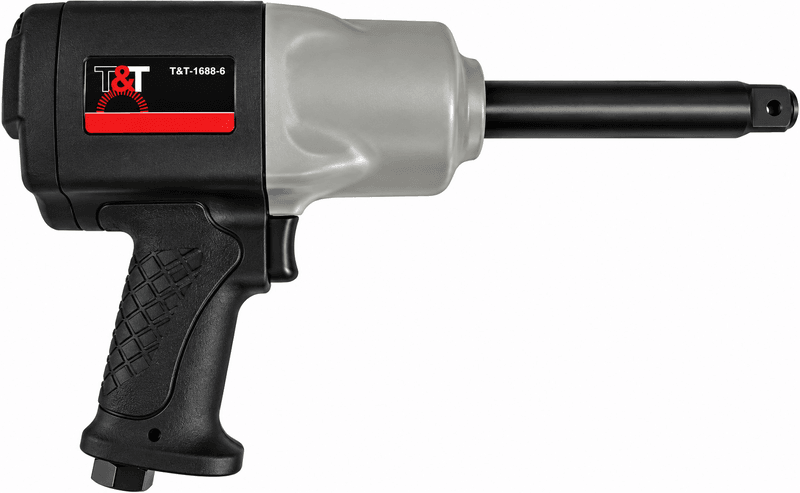

3/4" SQ. DR. Super Duty Composite Air Impact Wrench
Thumbnail
Thumbnail

3/4" SQ. DR. Super Duty Composite Air Impact Wrench

Item Code: T&T-1688-6

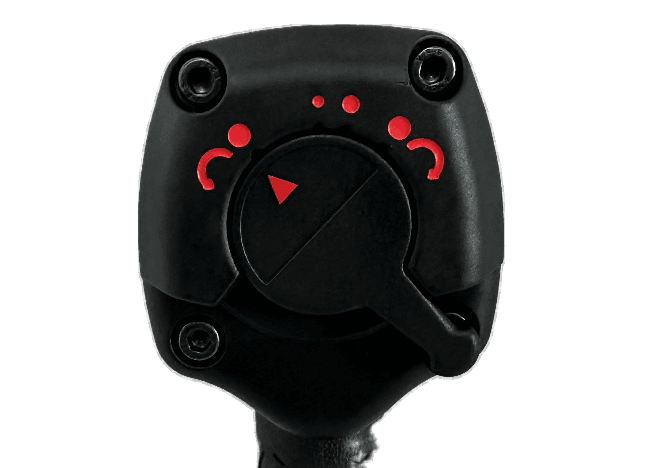

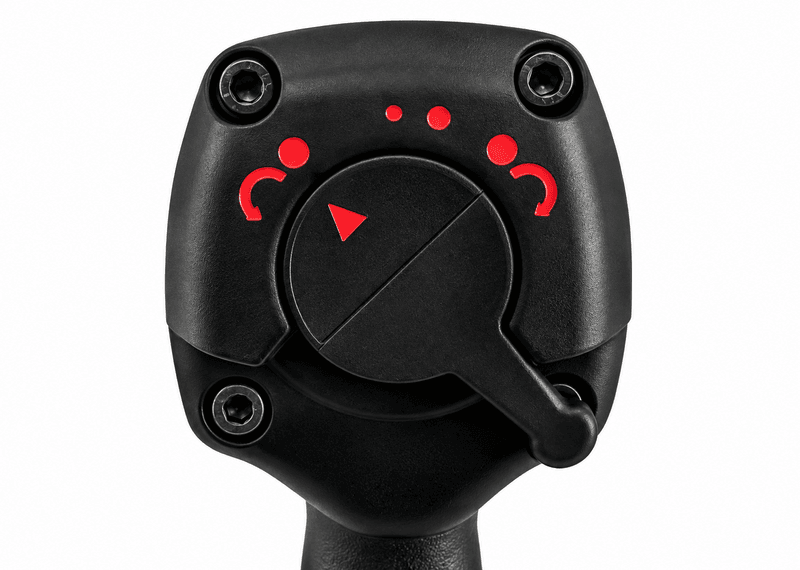

  • 3 positive power settings; full power in reverse
  • 1300 ft-lb of Max torque with 6,000 rpm free speed
  • Ergonomic composite handle
  • Unbeatable durability & reliability
  • Excellent power-to-weight ratio
  • Delivers an impressive performance perfect for a wide range of applications.

Dimensions

Length 1 - Metric (mm) 222

Weight

Metric (kg) 4.19

Power

Power Source Compressed Air

Recommended Air Inlet Pressure (psi) 90

Recommended Air Inlet Pressure (bar) 6.2

Avg. Air Consumption (cfm) 7.3

Avg. Air Consumption (L/min) 207

Air Inlet (inch) 3/8

Air Hose I.D. (inch) 1/2

Exhaust Direction Handle exhaust with muffler

Motor

Motor Type Air rotor

Speed of Motor (rpm) 6,000

Transmission Mode

Torque Transmission Mechanism New Twin Hammer clutch

Capability

Working Torque at 5th sec (Nm) 1,763

Working Torque at 5th sec (Ft-lb) 1,300

Holder

Anvil Length (inch)Standard

Anvil Shape Square Drive (inch)

Anvil Size - Square Drive (inch ) 3/4
