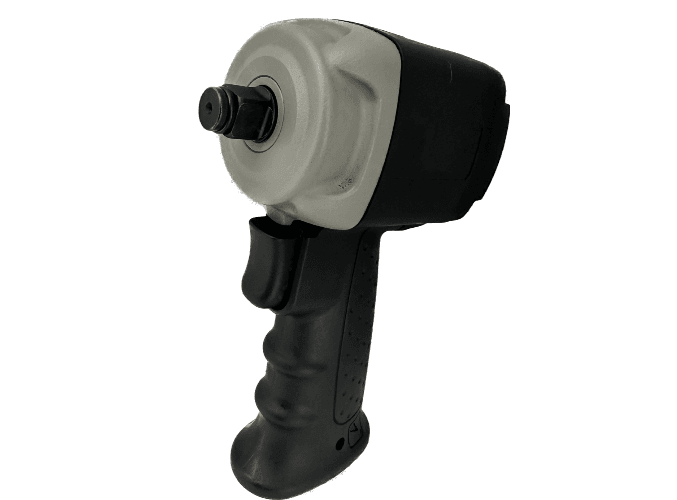

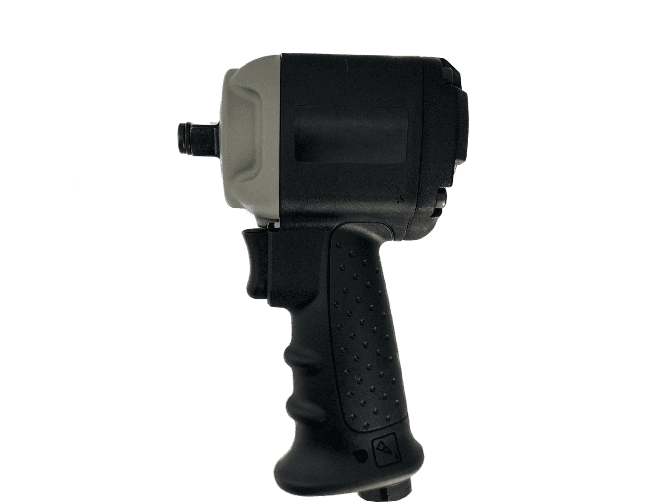

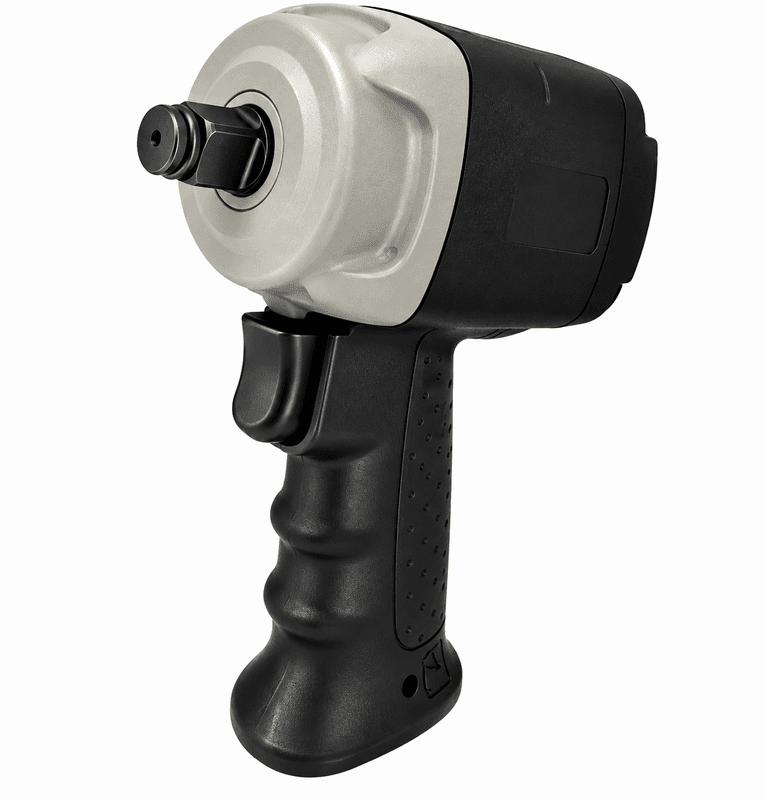

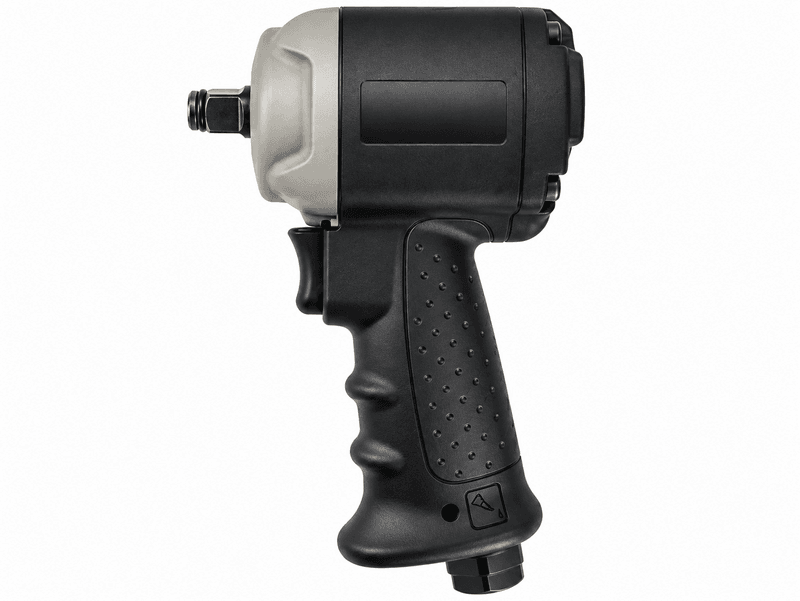

1/2" SQ. DR. Super Duty Composite Air Impact Wrench
Item Code: T&T1478
- Delivers impressive max torque 500 ft-lb in reverse, with 10,000 rpm free speed
- Short: only 113 mm in length
- Jumbo Hammer mechanism extend durability
- The most powerful and lightweight in its class
- Easy to access limited space
Dimensions
Length 1 - Metric (mm)113
Weight
Metric (kg)1.35
Power
Power Source Compressed Air
Recommended Air Inlet Pressure (psi)90
Recommended Air Inlet Pressure (bar)6.2
Avg. Air Consumption (cfm)4
Avg. Air Consumption (L/min) 113
Air Inlet (inch) 1/4
Air Hose I.D. (inch) 3/8
Exhaust Direction Rear exhaust with Muffler
Motor
Motor Type Air rotor
Speed of Motor (rpm) 10000
Transmission Mode
Torque Transmission Mechanism Jumbo Hammer clutch
Capability
Working Torque at 5th sec (Nm) 678
Working Torque at 5th sec (Ft-lb) 500
Holder
Anvil Length (inch)Standard
Anvil Shape Square Drive (inch)
Anvil Size - Square Drive (inch) 1/2
