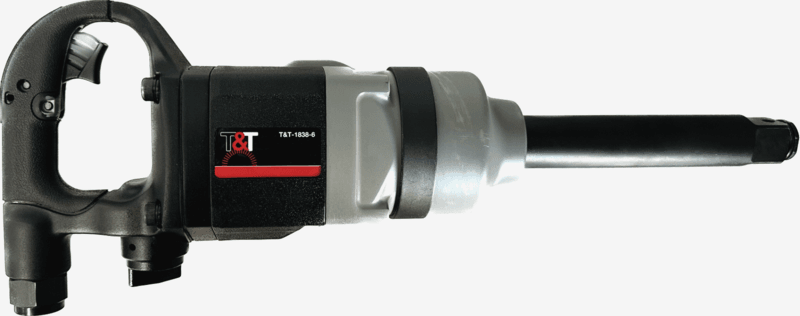

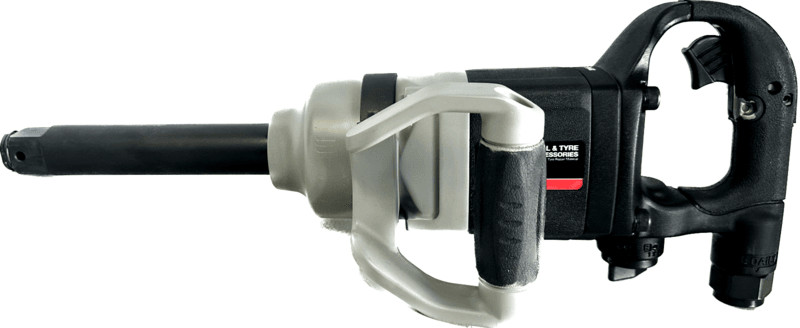

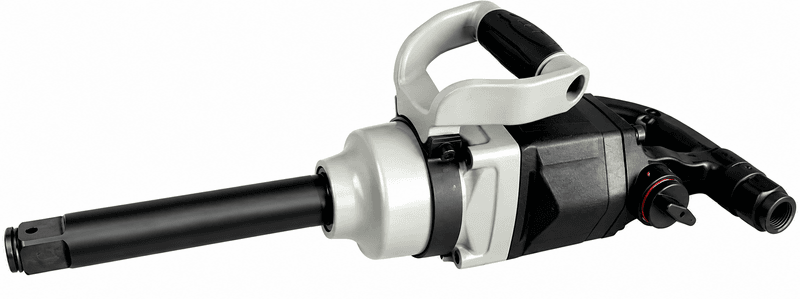

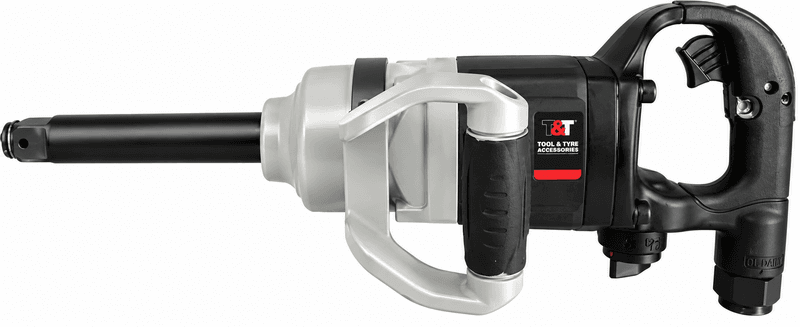

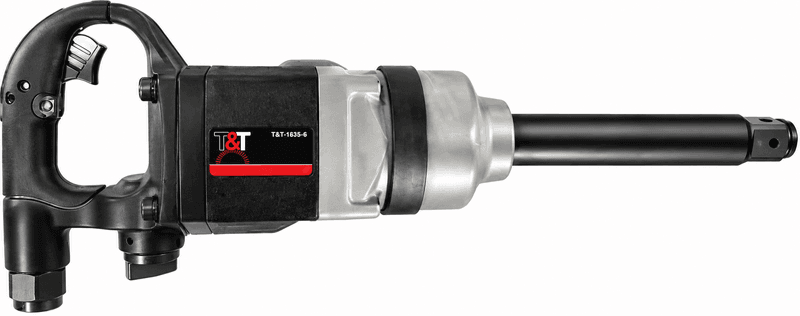

1" SQ. DR. Super Duty Air Impact Wrench

Item Code: T&T1838-6

3 positon power settings
360 degree adjustable side spade handle
Delivers an impressive 2000 ft-lb of maximum torque in an ultra-lightweight package at 8.1 Kg.
Excellent power-to-weight ratio
Side handle can be adjusted to suit various working postures.

Dimensions

Length 1 - Metric (mm) 487

Weight

Metric (kg) 8.1

Power

Power Source Compressed Air

Recommended Air Inlet Pressure (psi) 90

Recommended Air Inlet Pressure (bar) 6.2

Avg. Air Consumption (cfm)9

Avg. Air Consumption (L/min) 255

Air Inlet (inch) 1/2

Air Hose I.D. (inch) 3/4

Exhaust Direction Side Exhaust

Motor

Motor Type Air rotor

Speed of Motor (rpm)5,000

Transmission Mode

Torque Transmission Mechanism Twin Hammer clutch

Capability

Working Torque at 5th sec (Nm)2,712

Working Torque at 5th sec (Ft-lb)2,000

Holder

Anvil Length (inch) 6" Extended

Anvil Shape Square Drive (inch)

Anvil Size - Square Drive (inch) 1
