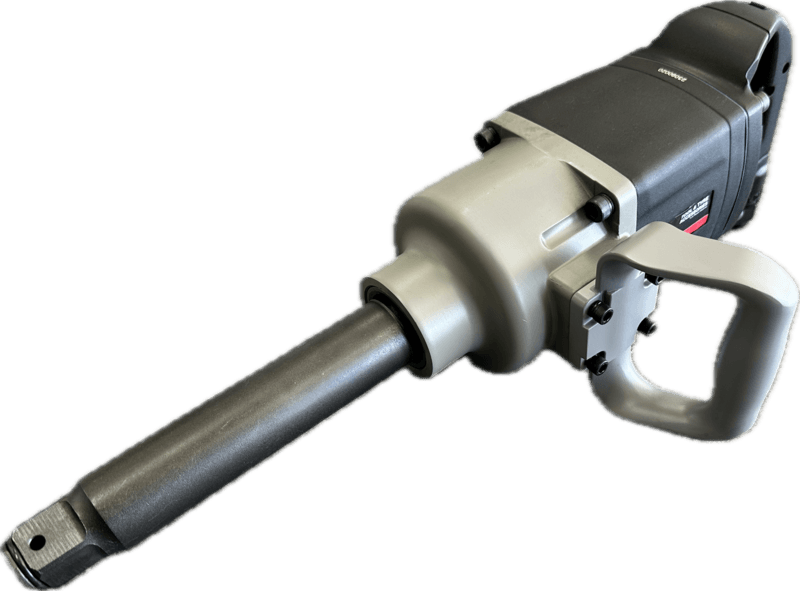

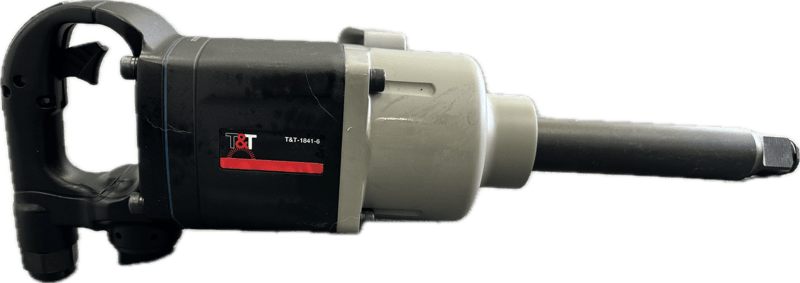

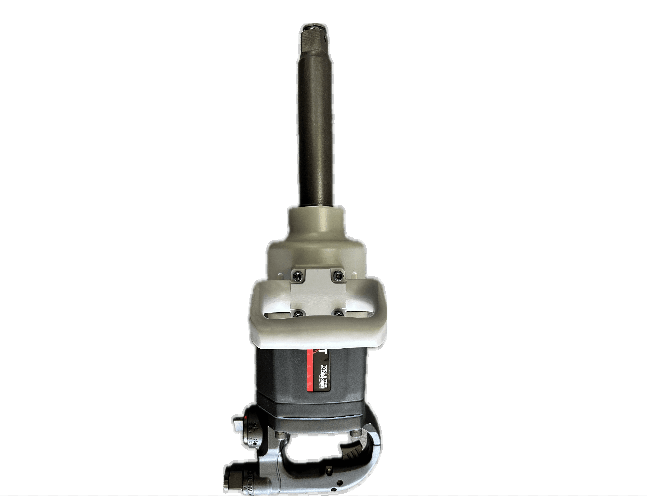

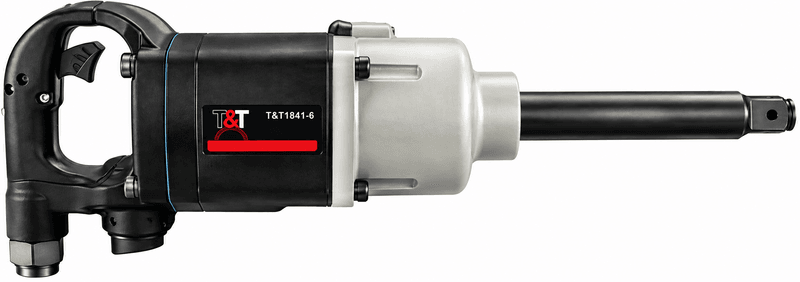

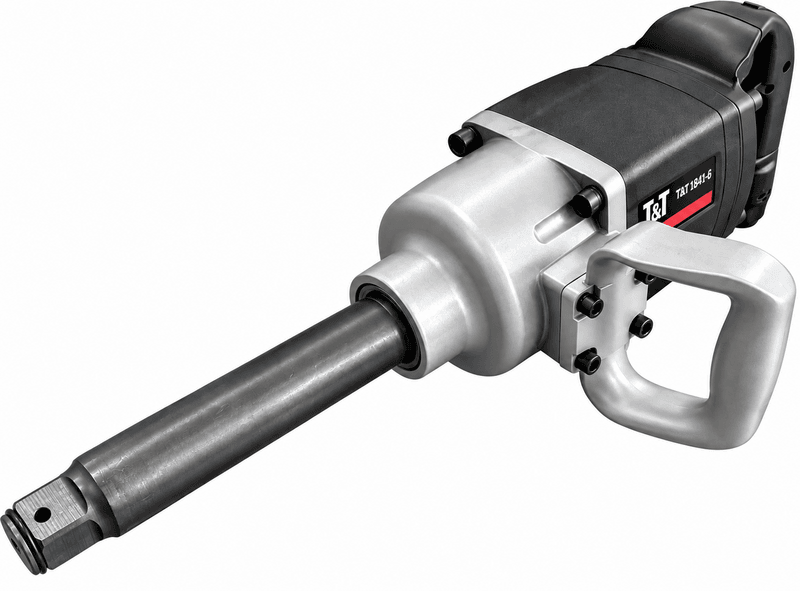

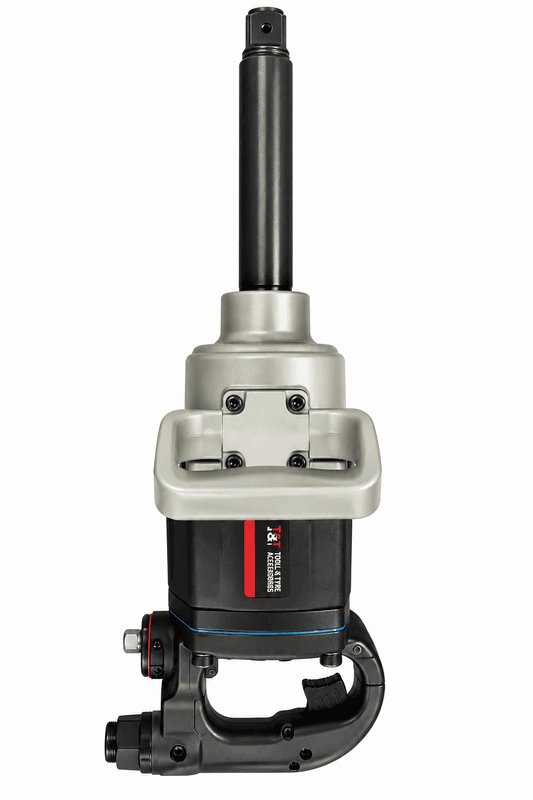

1" SQ. DR. Super Duty Air Impact Wrench
Thumbnail
Thumbnail
Thumbnail

1" SQ. DR. Super Duty Air Impact Wrench

Item Code: T&T1841-6
  • 3 position power settings
  • Pinless clutch- A smooth and balanced clutch with durability
  • Powerful Max torque of 2,500 ft-lb with 4,500 RPM free speed
  • Available in standard length anvil for model KI-1841.
  • Designed for industrial demands and extremely intensive vehicles services

Dimensions

Length 1 - Metric (mm)539

Weight

Metric (kg)13.6

Power

Power Source Compressed Air

Recommended Air Inlet Pressure (psi) 90

Recommended Air Inlet Pressure (bar) 6.2

Avg. Air Consumption (cfm) 9.1

Avg. Air Consumption (L/min) 258

Air Inlet (inch) 1/2

Air Hose I.D. (inch )3/8

Exhaust Direction Side exhaust

Motor

Motor Type Air rotor

Speed of Motor (rpm)4500

Transmission Mode

Torque Transmission Mechanism Pin-less Clutch

Capability

Working Torque at 5th sec (Nm)3390

Working Torque at 5th sec (Ft-lb)2500

Holder

Anvil Length (inch)6" Extended

Anvil Shape Square Drive (inch)

Anvil Size - Square Drive (inch)1
